22.8V 22000mAh Solid-State 6S Lithium Ion Battery- XT90
Regular price
Rs. 20,500.00
Sale price
Rs. 20,500.00
Regular price
Unit price
DESCRIPTION

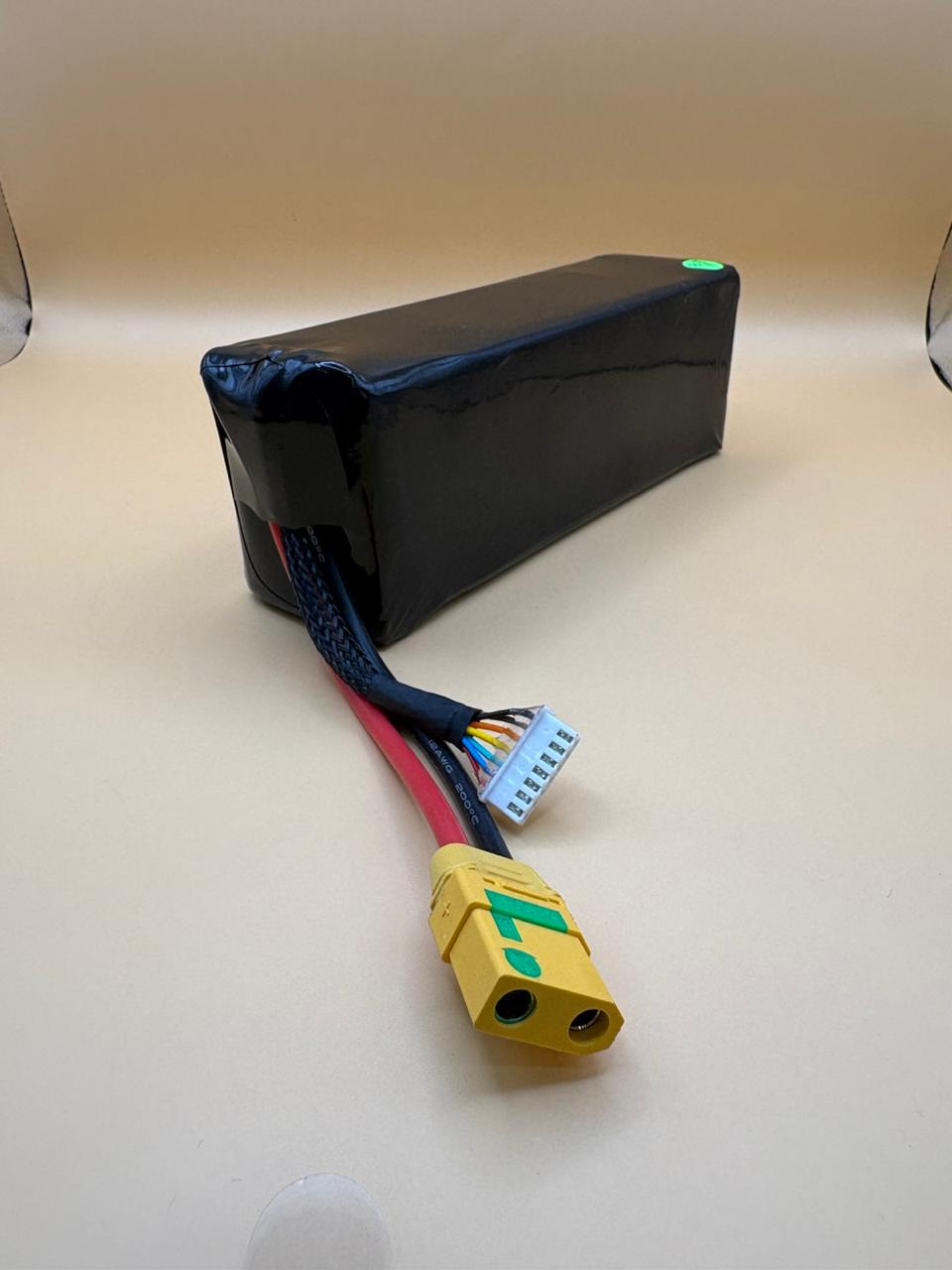

The 22.8V 22000mAh Solid-State 6S Lithium Ion Battery stores 502 Wh in a compact 170 × 70 × 70 mm pack. Built on semi-solid-state pouch cells for longer flights, it suits mapping, BVLOS, VTOL and surveillance drones.
Supplied with an XT90 power connector and a JST-XH 7-pin balance lead, and made in India by Revogreen. Every pack ships with a serial number and its capacity test result. Also see the 22.8V 15000mAh 6S version, our solid-state drone batteries, and the solid-state explainer.
Product Specification
| Capacity | 22000mAh (22 Ah) |
|---|---|
| Energy | 502 Wh |
| Energy density | 350 Wh/kg |
| Maximum voltage | 25.2V (4.2V per cell) |
| Nominal voltage | 22.8V (6 × 3.8V) |
| Standard charge current | 22A (1C) |
| Continuous discharge current | 110A (5C) |
| Peak discharge current (10 s) | 155A (7C) |
| Weight | 1430 g |
| Dimensions | 170 × 70 × 70 mm (±5 mm) |
| Balance connector | JST-XH 7-pin |
| Power connector | XT90 |
| Cell type | Semi-solid-state Li-ion pouch |
| Protection | None (unprotected pack, no BMS) |
